When you work on a project with other members of your workspace, you can discuss the logic where it lives: comments sit right at the step they are about, so everyone sees them in context.

​
Add a comment

  1. Select a step in a diagram. If the step’s section is shown in the document, maximize the section first, so the node toolbar has room.
  2. Click Add comment in the node toolbar. A comment box opens right at the step.
  3. Write your comment and click Comment.

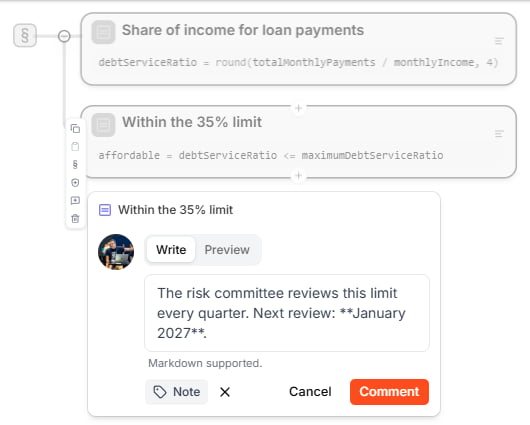

The comment box at the step Within the 35% limit, with a comment in Markdown, the tag Note, and the Comment button In the comment box you can:
  • Use Markdown for formatting — Preview shows how it will look.
  • Type @ to mention someone. They find the comment in their @Me tab.
  • Click Add tag to mark what kind of comment it is: Note, Todo, Fixme, Question, or Suggestion.
If you close the box before posting — with Esc or by clicking elsewhere — your text is kept, and it comes back when you open the box at the same step again. A step with comments shows a speech-bubble badge with their number.

​
The Comments panel

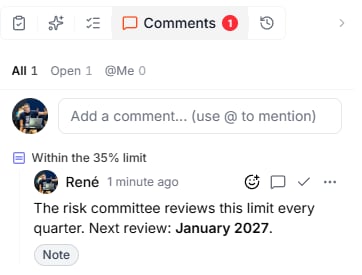

Click the Comments tab in the right sidebar to see all comments in the project. The Comments panel with the tabs All, Open, and @Me, a field to add a comment, and a comment by René on the step Within the 35% limit, tagged Note The field at the top adds a comment about the project as a whole. Comments on a step are grouped under the step’s name.

​
Reply, resolve, and more

Hover over a comment to see its actions:

​
Comments in a review

While a draft is in review, comments on it belong to the review: you find them under Review comments in Review & Delivery, not in the Comments panel. Comments a reviewer writes in Draft Review stay private until they submit their review. See Review & Approvals.

​
What to do next

  • Review & Approvals — have a teammate review a change before it reaches main
  • Workspaces — invite the people you work with
  • Lab Agent — let the agent work on what your comments ask for
